Compliant Crew and Apparatus Safety Components

Seat Monitors and Vehicle Data Recorders (VDR) keep your department fully NFPA Compliant

The Seat Monitor and Data Acquisition System has been designed to exceed NFPA 1901 Standard for Automotive Fire Apparatus 2009 Edition requirements for a Vehicle Data Recorder (paragraph 4.11) and a Seat Belt Warning System (paragraph 14.1.3.10). The VDR is the brain of the system. Waterproof, and installed permanently in your vehicle, it logs and time stamps information required by the system, and can be downloaded when needed securely.

Ensure your crew is belted and record critical driving events

System Components Made to Work

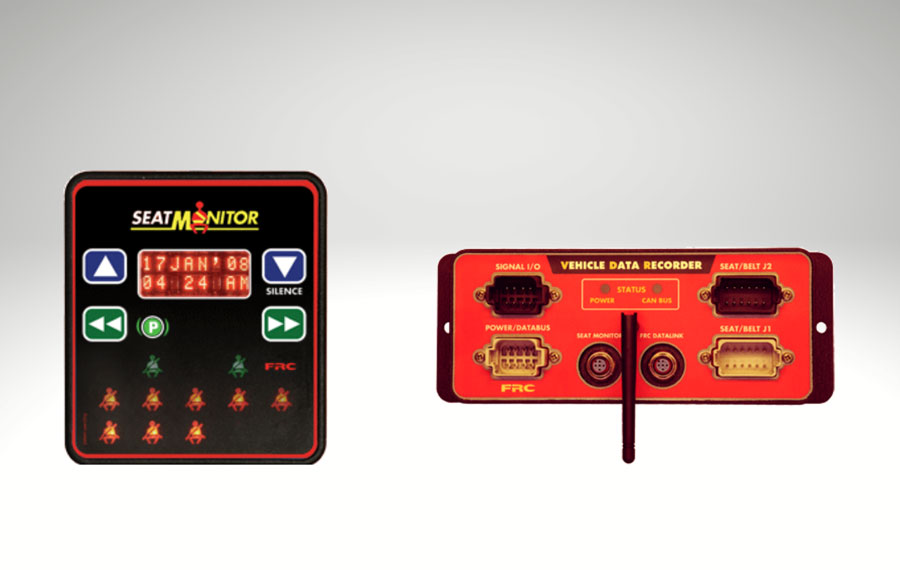

Seat Monitor and Data Acquisition for today’s apparatus

HEADS UP VIEW

Bright and intuitive display gives the driver real time information.

NAVIGATION

Simple push buttons for navigating through programs and warnings.

COMPLIANT

Meets and exceeds the requirements laid out in NFPA 1901.

Vehicle Data Recording of Critical Driving Events.

Stored data is password protected and can be downloaded from the VDR by a paired device via wireless connection.

  • The vehicle data recorder records the following data once per second and stores it in a 48 hour loop
    Vehicle Speed
    Acceleration
    Deceleration
    Engine Speed
    Engine Throttle Position
    ABS Event
    Seat Occupied Status
    Seat Belt Status
    Master Optical Warning Device Switch
    Time
    Date
  • Additionally, the VDR records the following data once per minute and has enough memory to store it for 100 engine hours
    Maximum Vehicle Speed
    Maximum Acceleration
    Maximum Deceleration
    Maximum Engine Speed
    Maximum Engine Throttle Position
    ABS Event
    Seat Occupied with Seat Belt Unbuckled
    Master Optical Warning Device Switch
    Time
    Date
