Superior Image Clarity Outside the Vehicle
Up to 6x the resolution of typical analog bus cameras

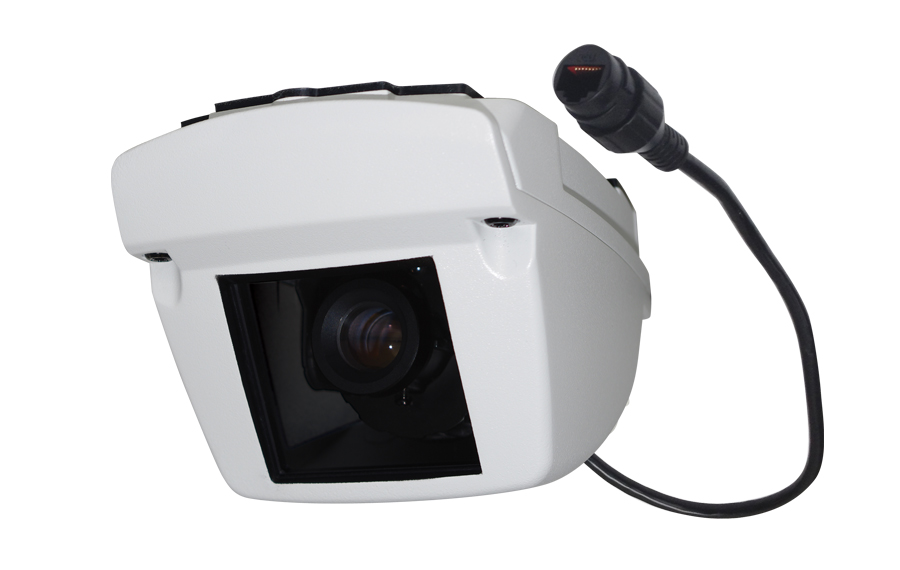

The CHW8 camera uses progressive scan technology to deliver a clear, crisp, high definition image with up to 6x the resolution of a typical analog camera. Suitable for applications where picture quality is paramount. See license plate details, forward facing camera views and zoom in to find specific video evidence.
PROGRESSIVE SCAN TECHNOLOGY DELIVERS CLEAR, CRISP RESOLUTION
Zoom in for detailed video evidence
Catch Stop-Arm Violators in Action
Zero in on vehicle license plates using the 8mm lens.
Perfect Camera for Accident Reconstruction
Get a superb wide-angle view of the road ahead with the 3.6 mm lens.
Up to 6x the Resolution of a Typical Bus Camera
Get crystal clear image quality using progressive scan technology.
Great clarity outside the vehicle
Recommended for School BusesFixed Route Transit BusesDemand Response or Paratransit Buses
Mechanical/General:
Enclosure Material: Solid aluminum alloy, powder coated
Mounting Options: Ceiling or wall-mounted
Gimbal: Rotate: 350°, Pan: 15°, Tilt: 30°
Dimensions (WxLxH): 3.45 x 5.16 x 3″ (88 x 131 x 77 mm)
Electrical:
Resolution: 1280 x 720 (720p), 1920 x 1080 (1080p), 2304 x 1296 (3MP: 16×9), 2048 x 1536 (3MP: 4×3), Progressive Scan
Environmental:
Environmental Rating: IP67 (outdoor, high-pressure, water-resistant)
Operating Temperature: -40 to 122°F (-40 to 50°C)
